Thin non-asbestos gasket sheet from China manufacturer - Ningbo Saier Sealing Materials Co.,Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


Add to Basket	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: NY4150W

Production Capacity: 1200 ton / year

Delivery Date: According to the quantity

Style: O Ring

Brand Name: Sealstars

Thickness: 0.5-5mm

Density: 1.95 g/cm3

Means of Transport: Ocean

Packing: tray,case

Standard or Nonstandard: Others

Material: Rubber

Color: Blue,Green,yellow,red,black

Size: 1500x1500,1500x2000,1500x10...

Logo: can put your logo on

Sealstars can manufacture very thin rubber sheet,thinnest one is 0.5mm,In addition we can manufacture all kinds of thickness between 0.5mm and 5mm.

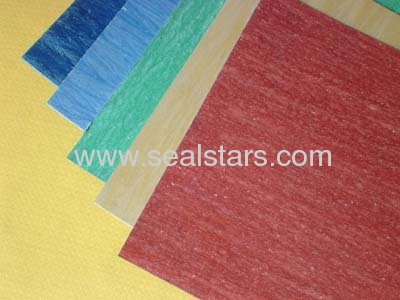

Thin non-asbestos rubber sheet

Description:

Sealstars provides fiber sheet is a blend of cellulose and fibers combined with reinforced inorganic filler, imparts an excellent sealing at medium flange loads. It has good compressibility and coefficient of resilience.

NY4150w Data:

Item		Unit	Value
Identification color/overprint		/	blue,yellow,green
Density		g/cm³	1.95
Tensile strength ASTMF-152		Mpa	≥4.5
Compressibility ASTMF-36		%	7~17
Resilience ASTMF-36		%	≥35
Creep relaxation rate		N/mm²	≤35
Leakage rateASTMF-37		cm³/s	1.0×10^-2
Oil resistance /Thickness growth	ASTM1#oil (ASTMF-146)	%	≤10
	ASTM3#oil (ASTMF-146)	%	≤15
Temperature		℃(℉)	100~120 (212~248)
Applicable medium:Tap water, industrial water, seawater ,atmosphere, acid, alkali, oil. long-term usage temperature should be 100℃~120℃(212℉~248℉).

Note:Load with the maximum values for pressure and temperature is no possible in operation state; see p.T standard value.

Prime Features

> Material: acrylic fiber, composite fiber and NBR,
> Size:1500x1500,1500x2000,1500x1000,1300x1300(mm)
> Thickness:0.5-5mm

> 100% not including asbestos

> Wide range of temperatures

Product Data:

Quality Control:
Quality is enterprise's survival premise, the market is enterprise's survival environment, customer is the enterprise survival, the benefits source. Enterprise continuously to develop and continue to improve quality level, by the fine quality of employees to make high quality product, excellent service and good reputation, be honest, credible, win the broad market seek greater progress and development.

ISO9001:2008
